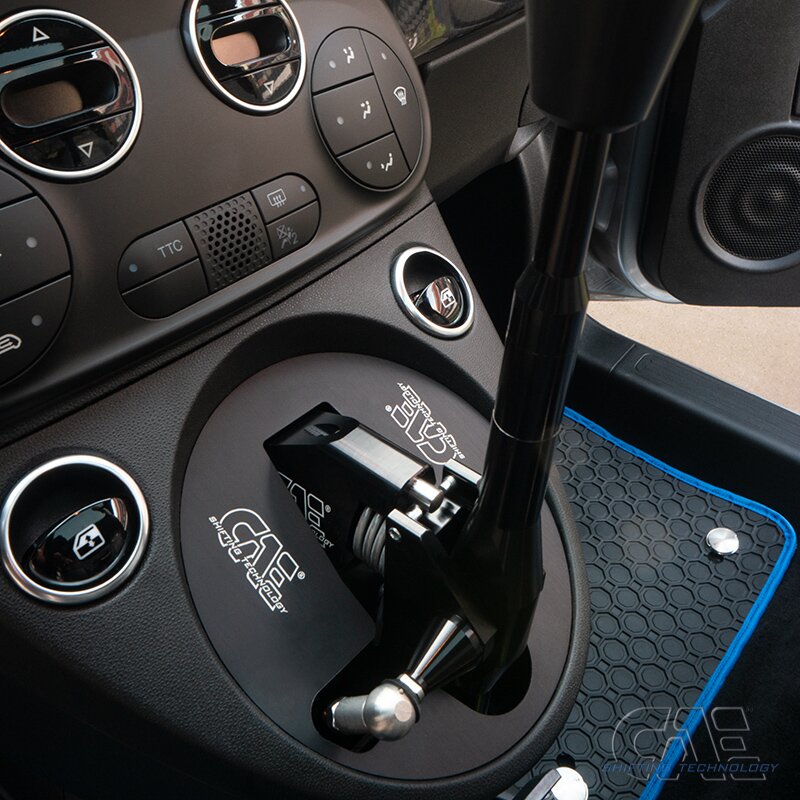

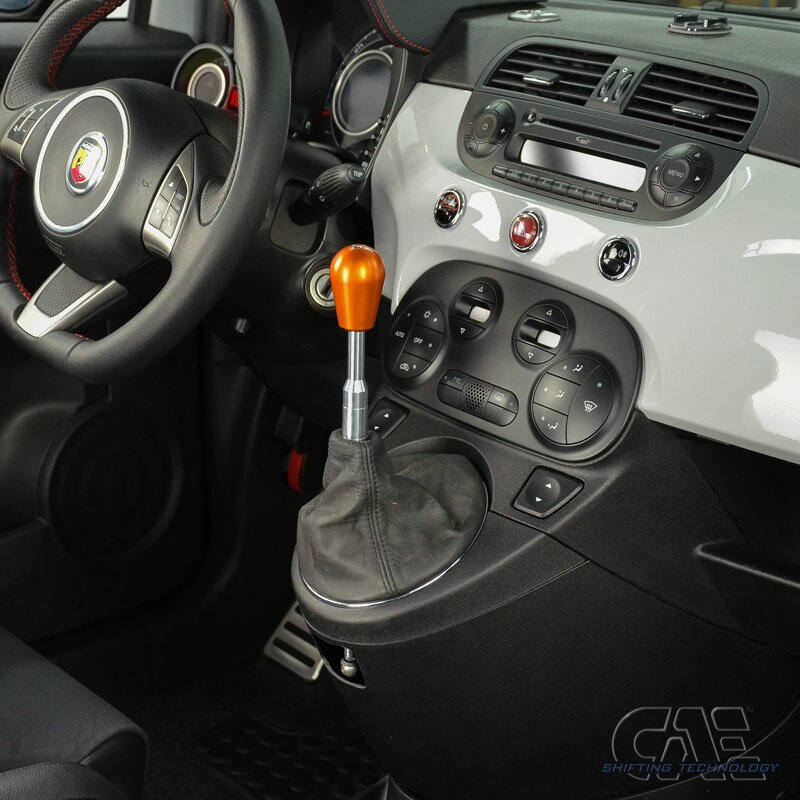

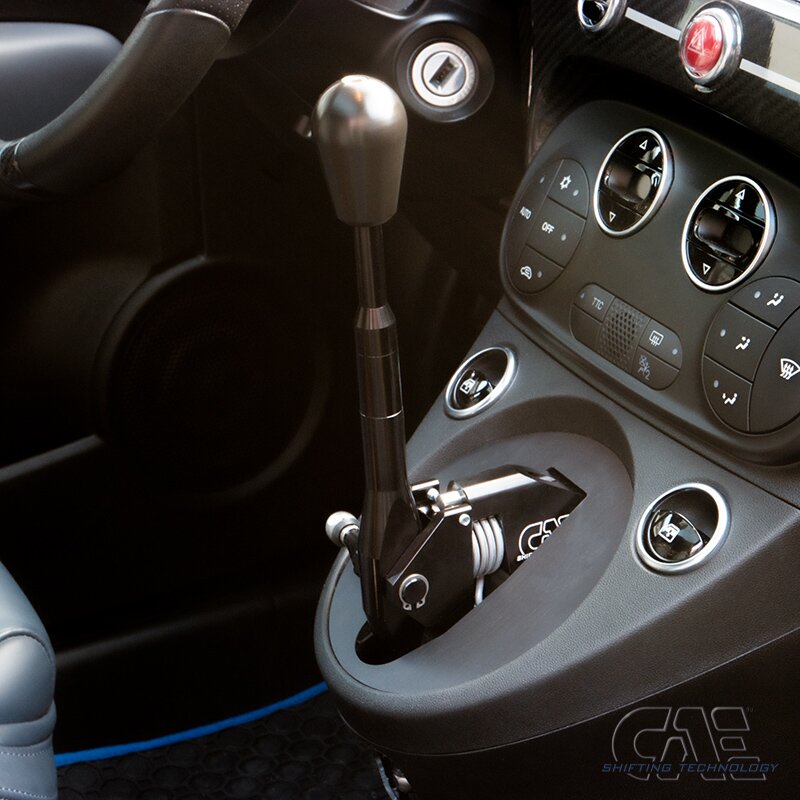

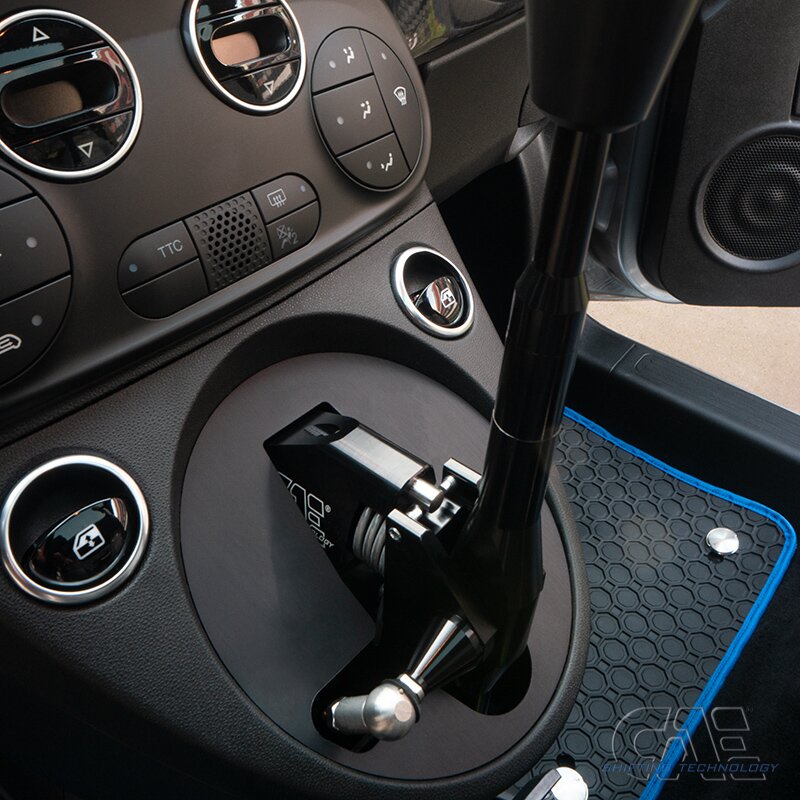

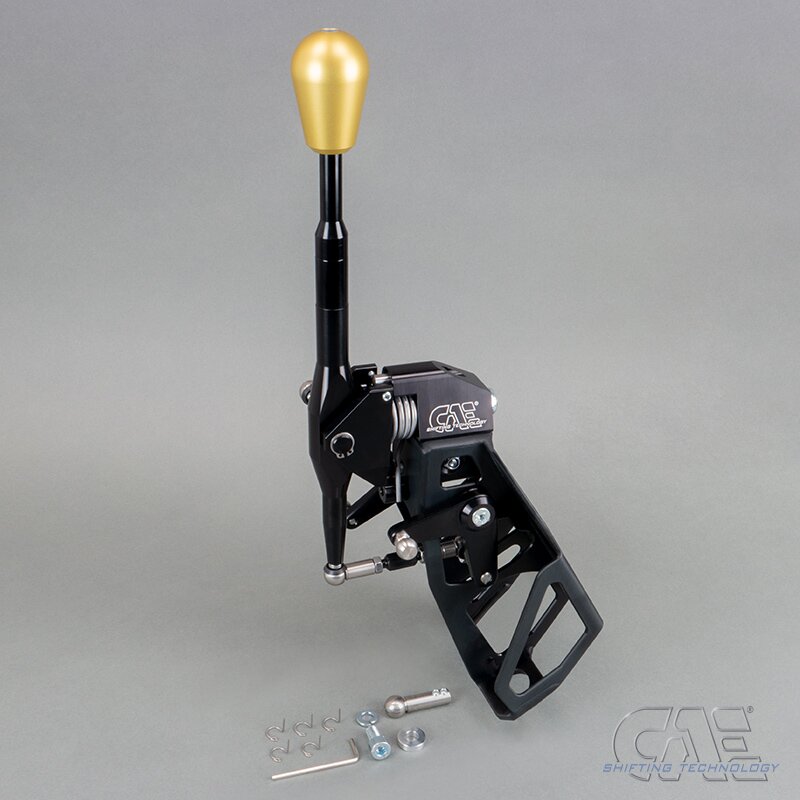

CAE Ultra Shifter for Fiat 500 Abarth Black Anodized
CAE Ultra Shifter for Fiat 500 Abarth Black Anodized
CAE ORDERS MAY HAVE A LEAD TIME, IF THERE IS A TIME CRUNCH PLEASE REACH OUT PRIOR TO ORDERING FOR CURRENT ETA. "IN STOCK" ON THE WEBSITE IS NOT ALWAYS 100% ACCURATE DUE TO MULTIPLE CHANNELS OF SALES. Please view our cancellation policies or reach out prior to ordering if there are questions.

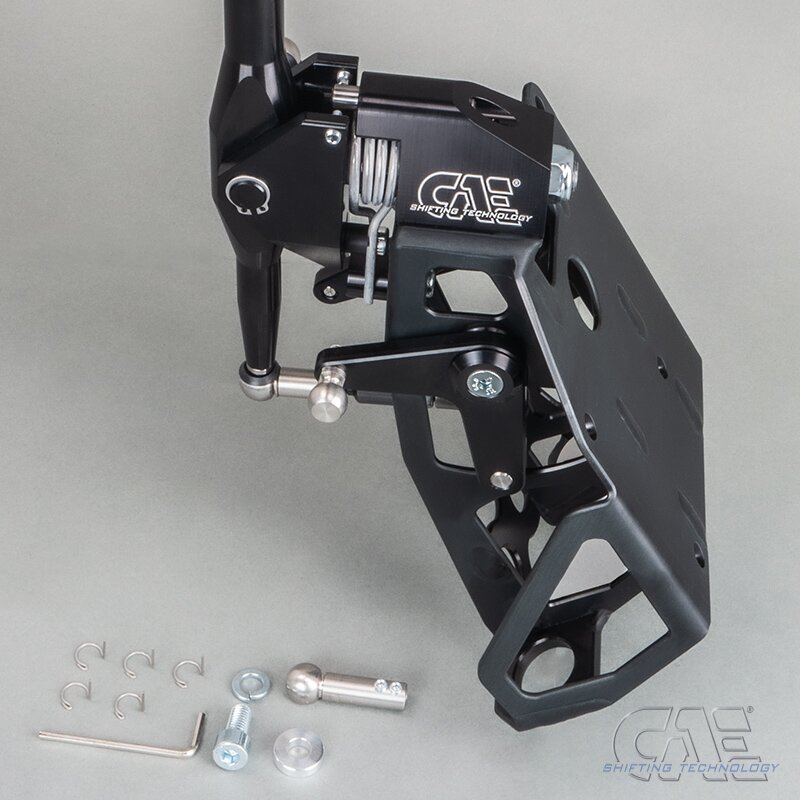

CAE Ultra Shifter - Optimised for motor sports with the following features:
- CAE Ultra Shifter for Fiat 500 Abarth, suitable to stock cables, all gearbox types.
- Short and super-precise shifting travel, exclusively H-pattern and suitable for 5 Speed -gearbox.
- The clutch system remains in its original form.

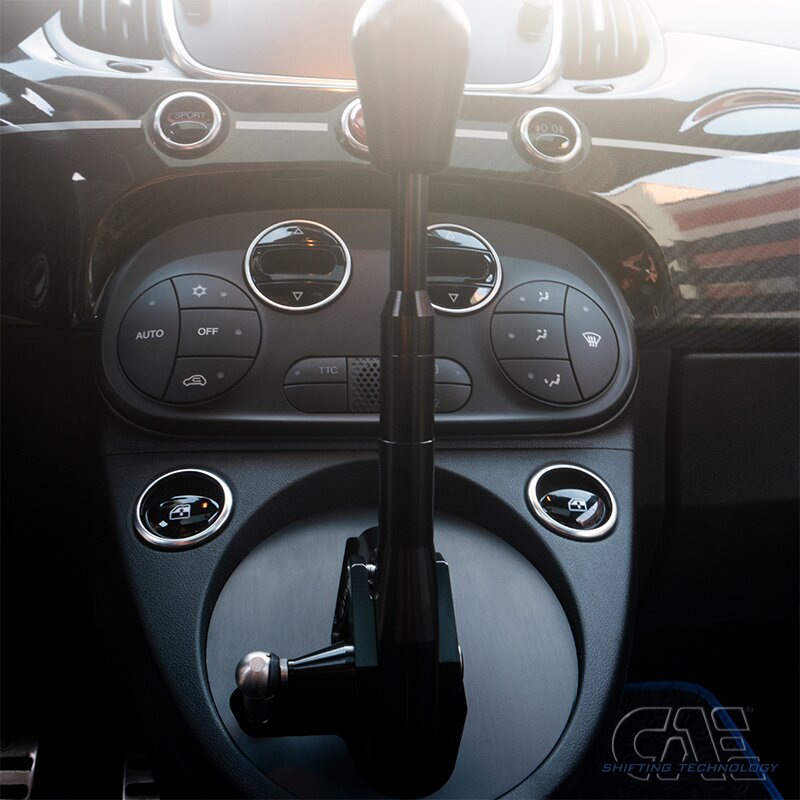

- Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm.
- reverse gear lock like stock version
- Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
- Problem-free shifting of gears under stress or in curves.

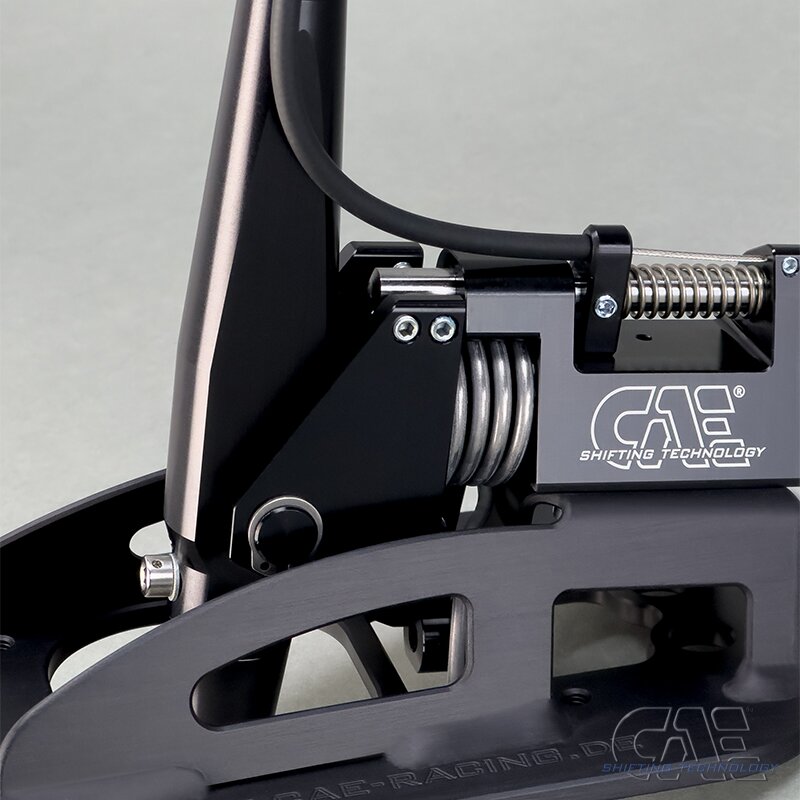

- Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
- Right/left stops and reverse gear stop adjustable separately.
- Simple installation through complete conversion kit: All systems are delivered with all small parts, fastening material and detailed installation instructions.

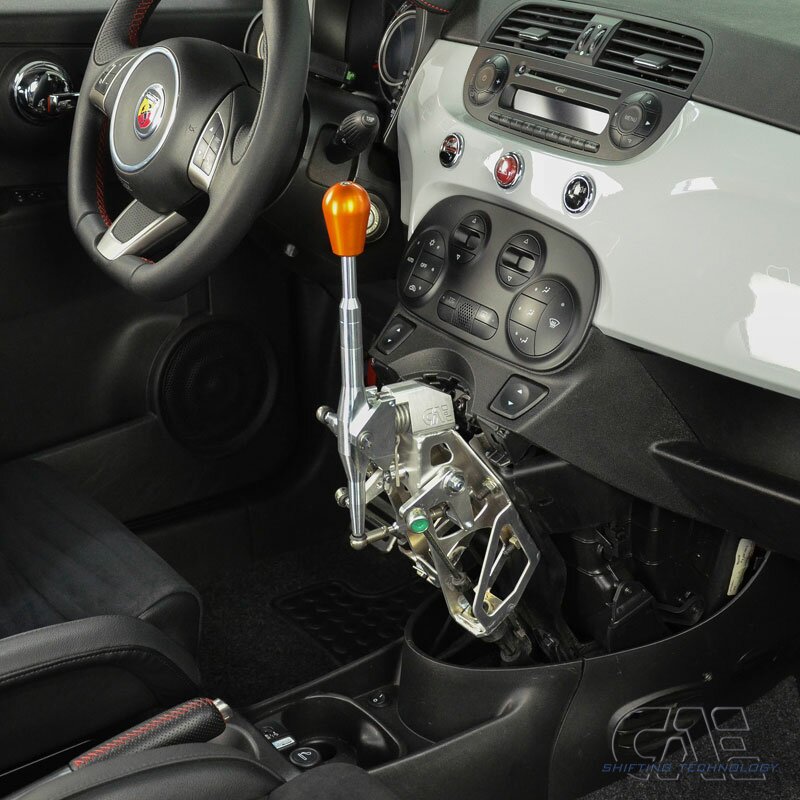

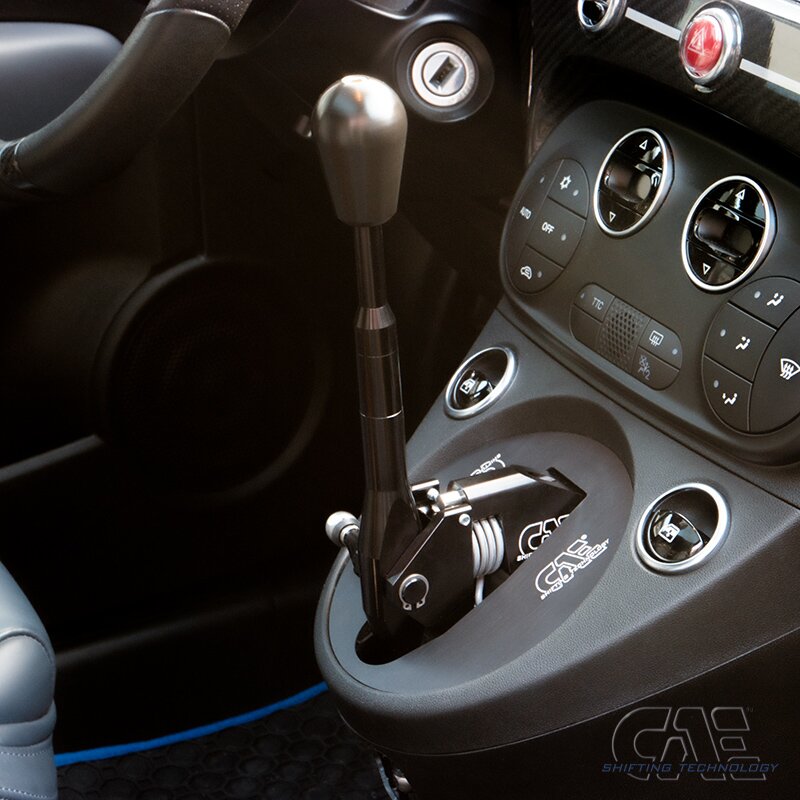

- Shifters is intended for vehicles without interior equipment or without a centre console and make use of the mounting points of the original shift lever.

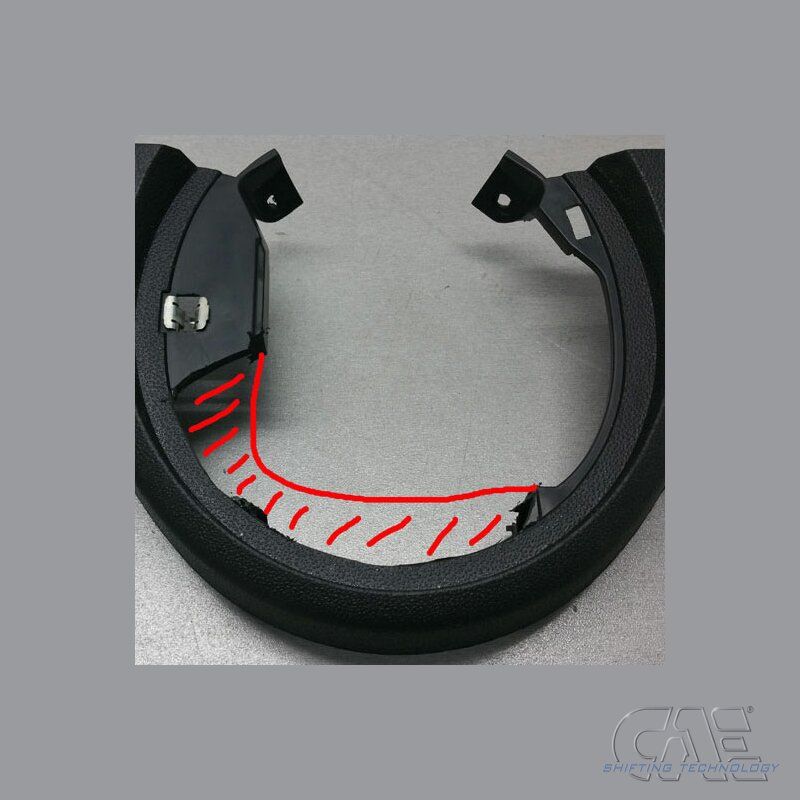

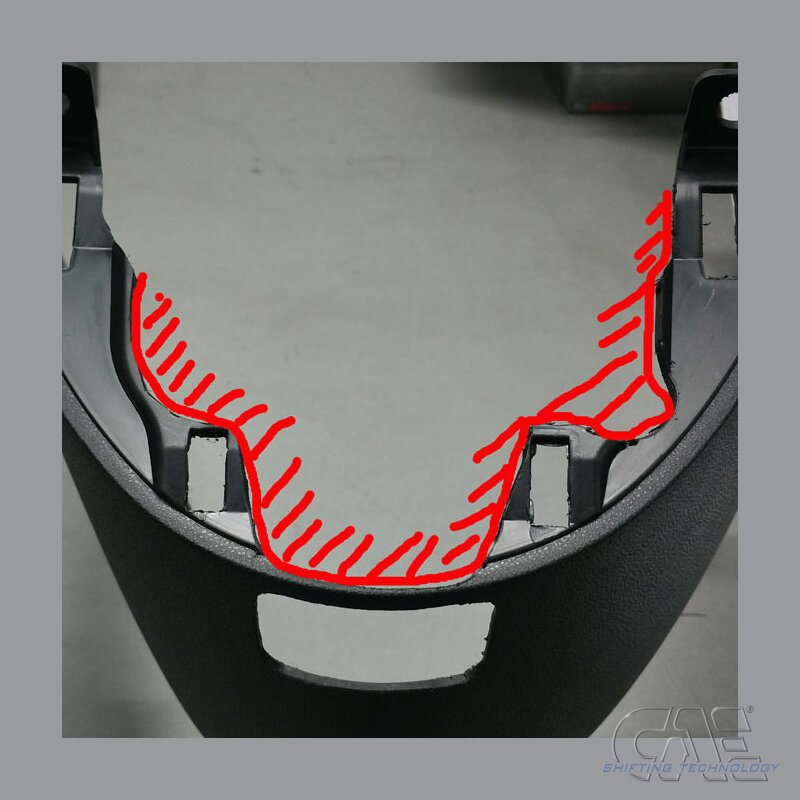

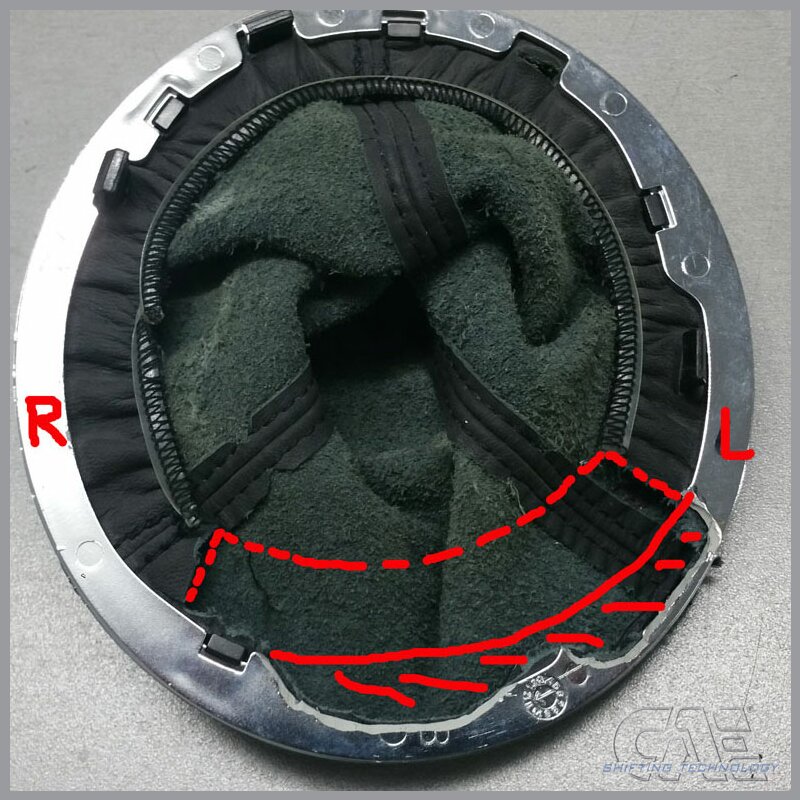

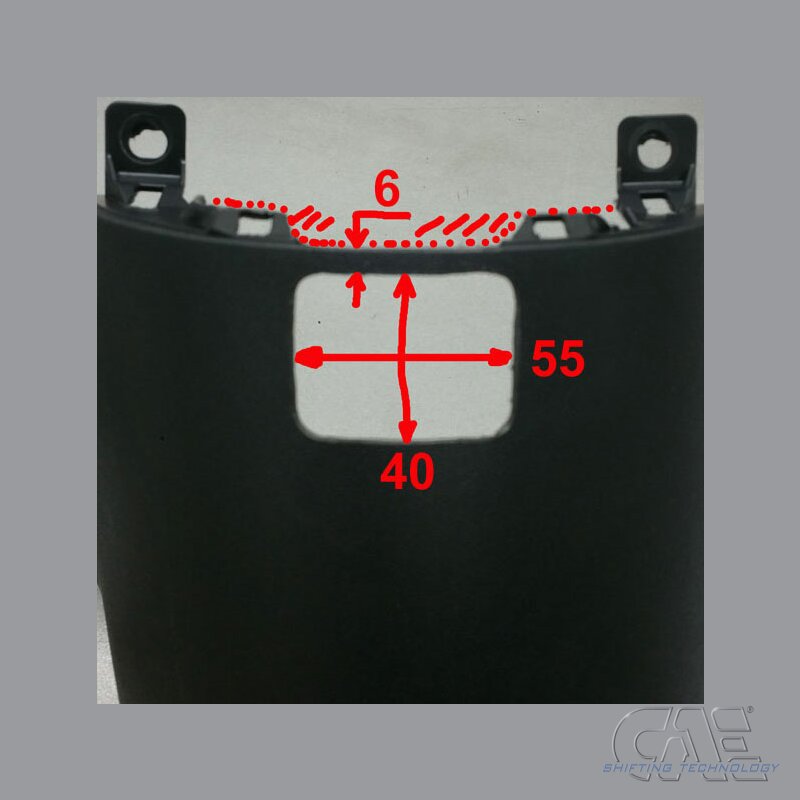

- If Center console should be istalled it have to be modyfied; We recomend the Fiat part without parcel shelf: Fiat Art No 0 735 481 675

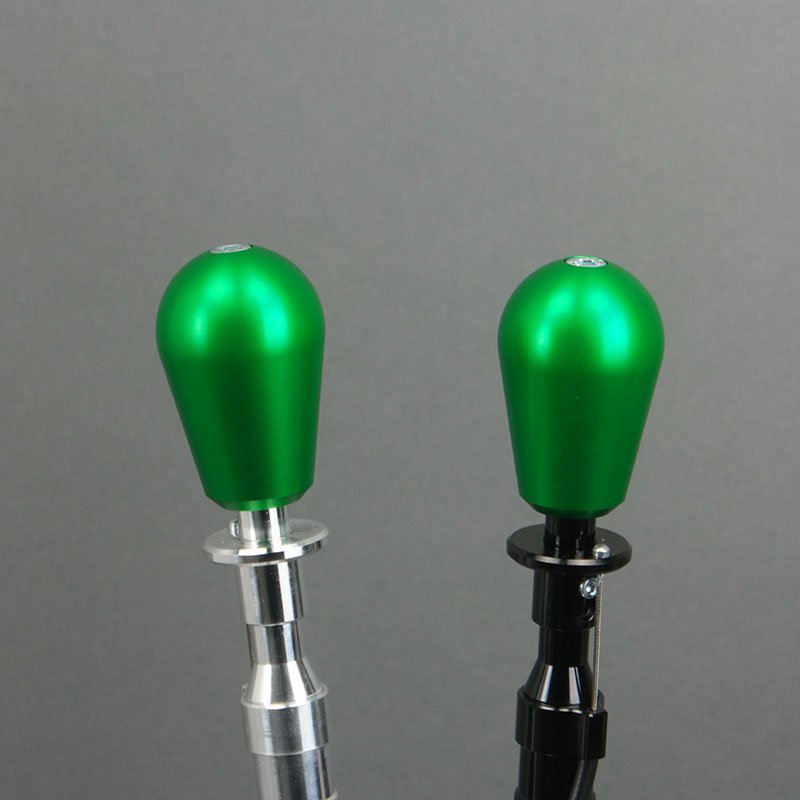

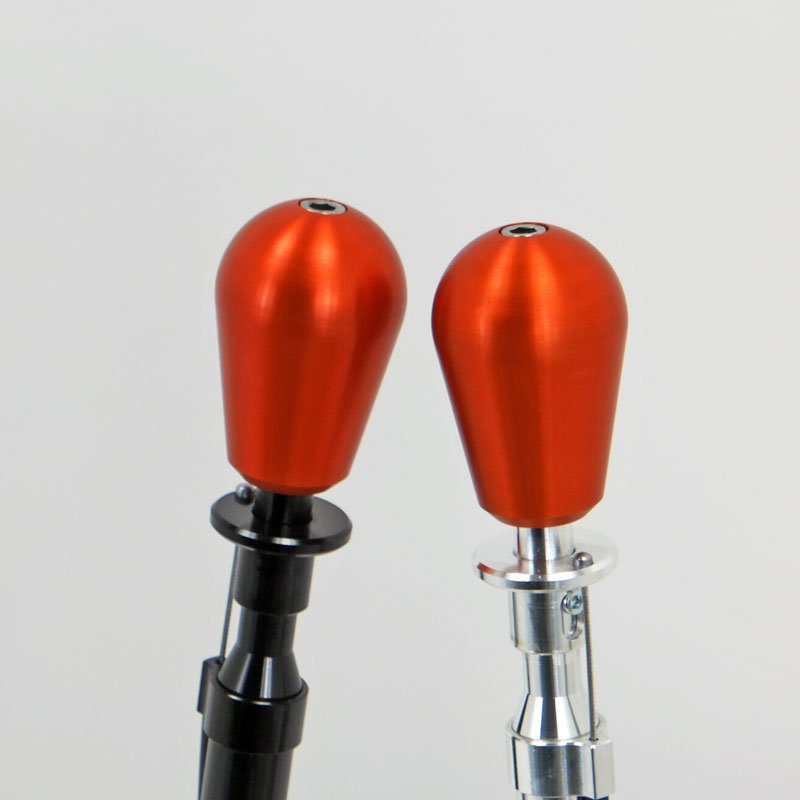

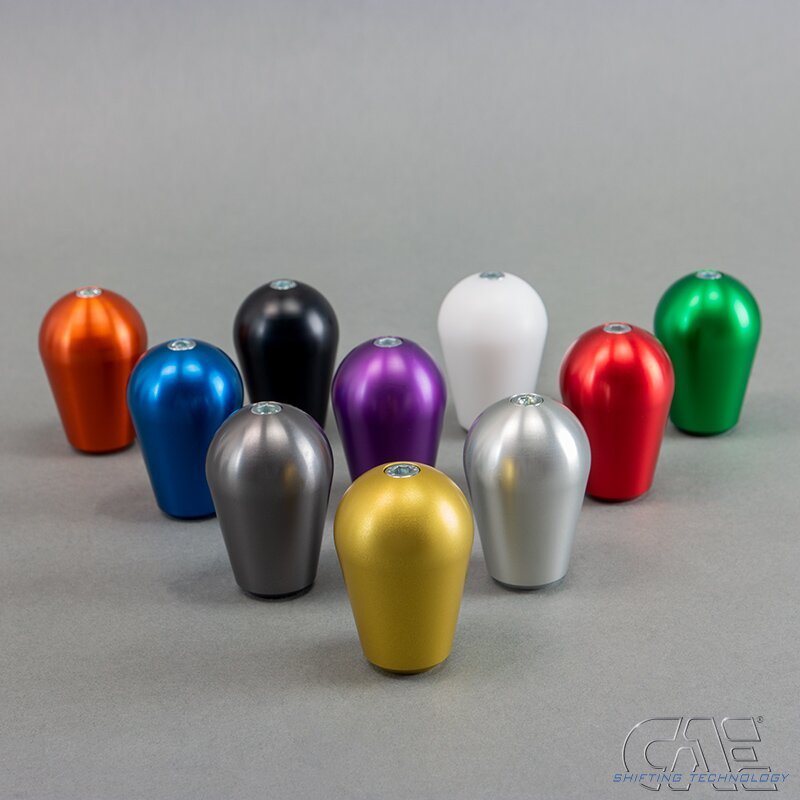

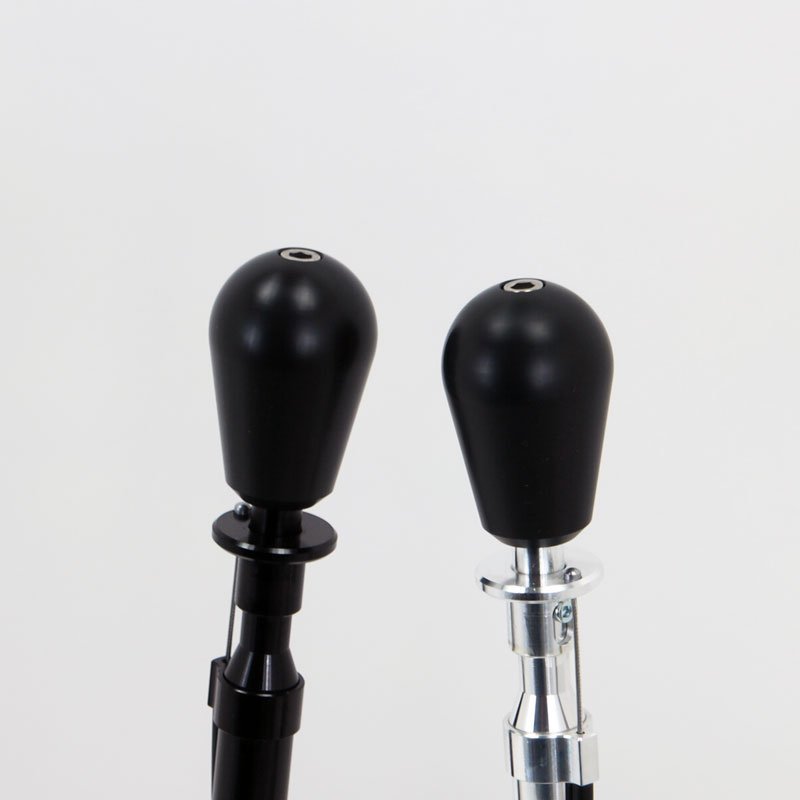

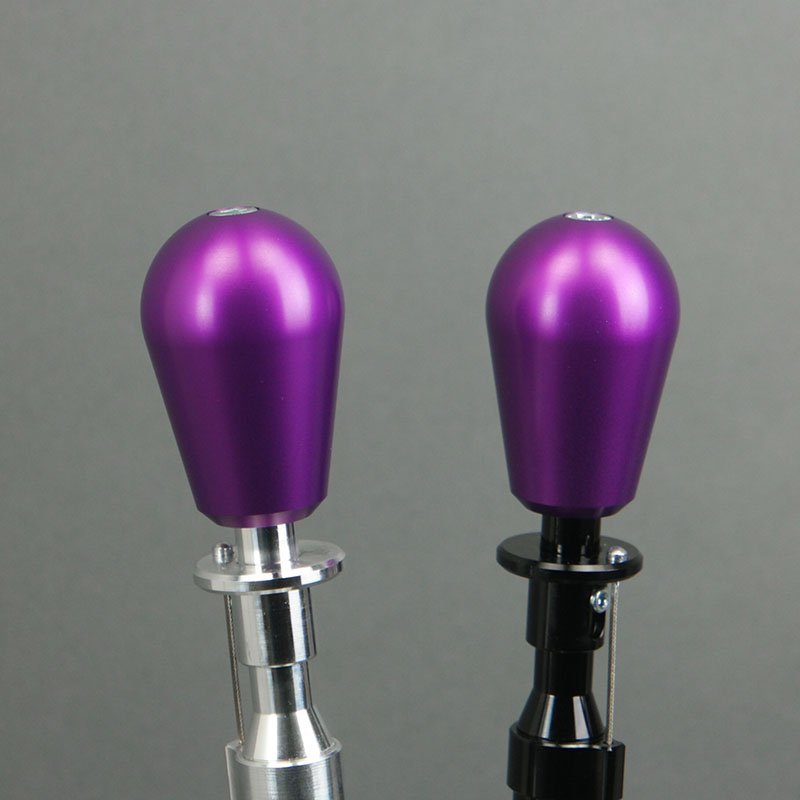

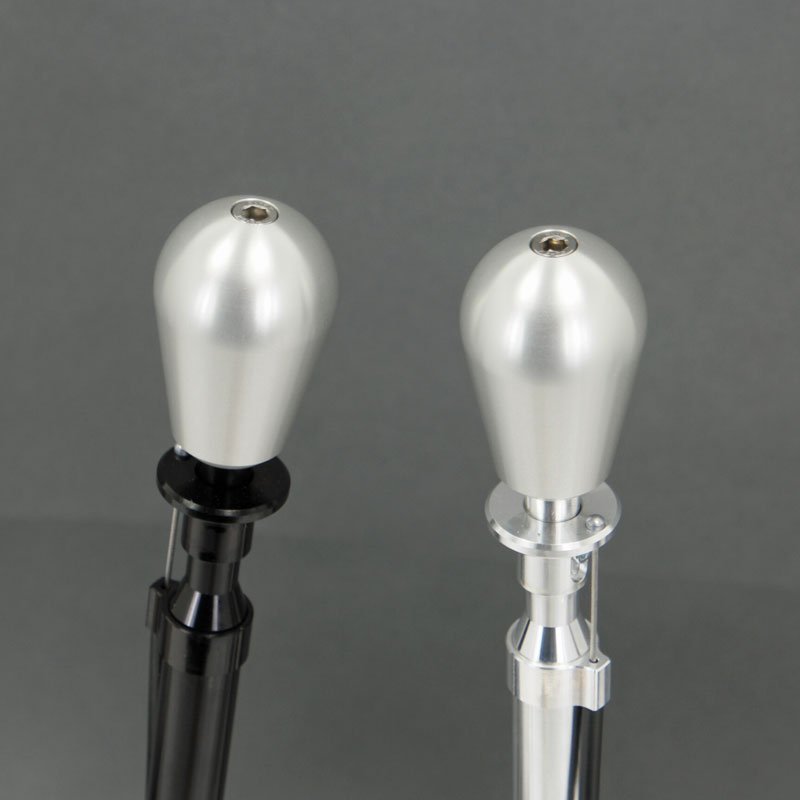

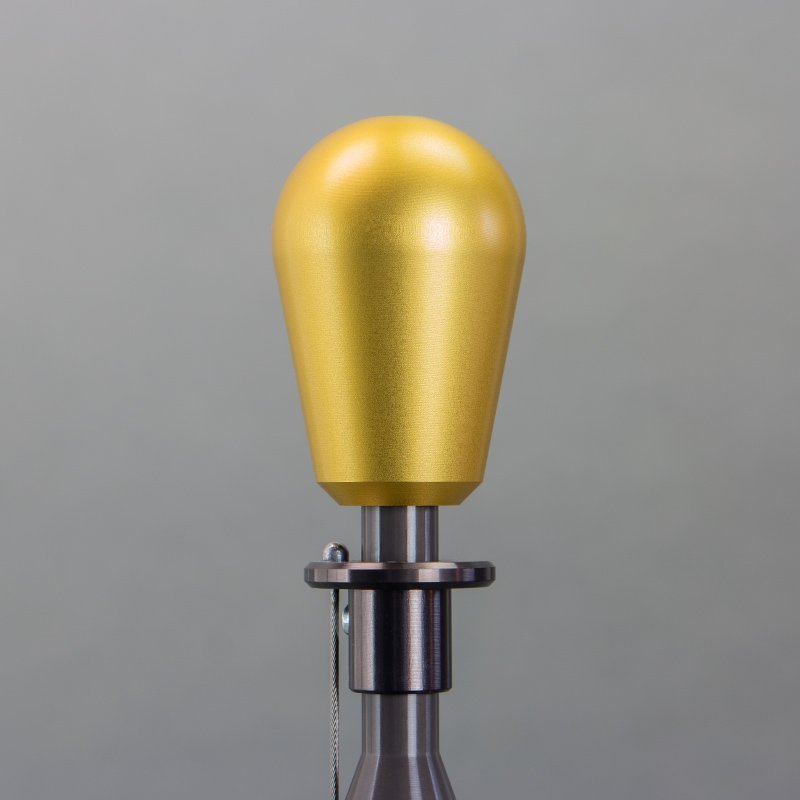

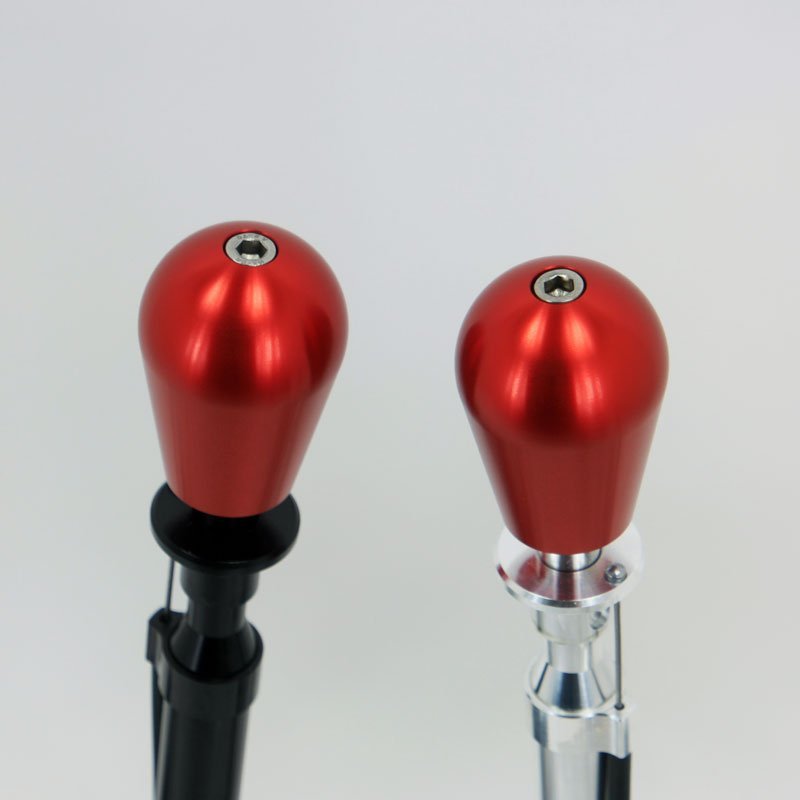

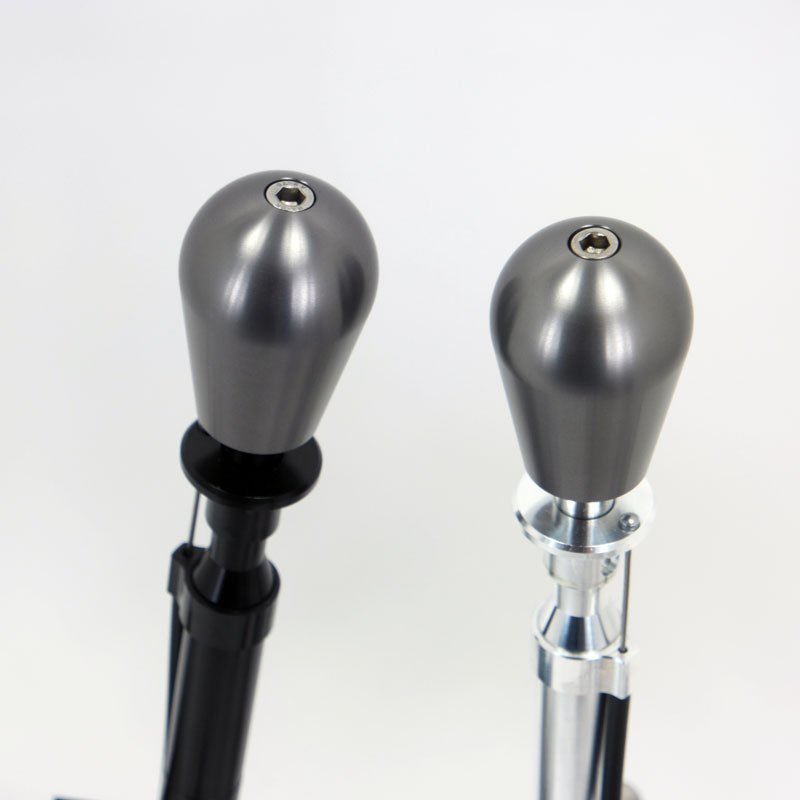

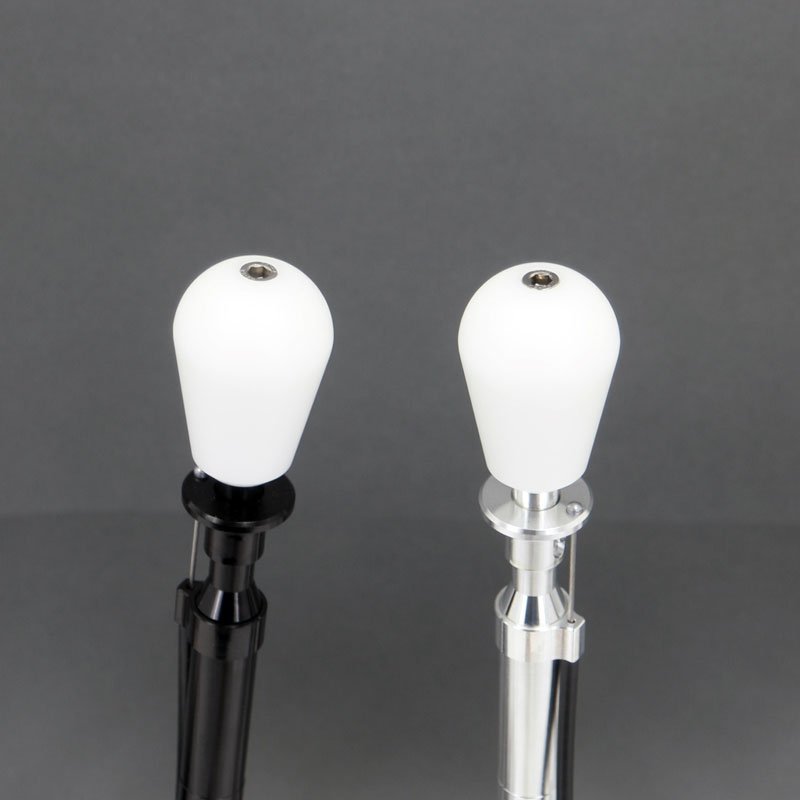

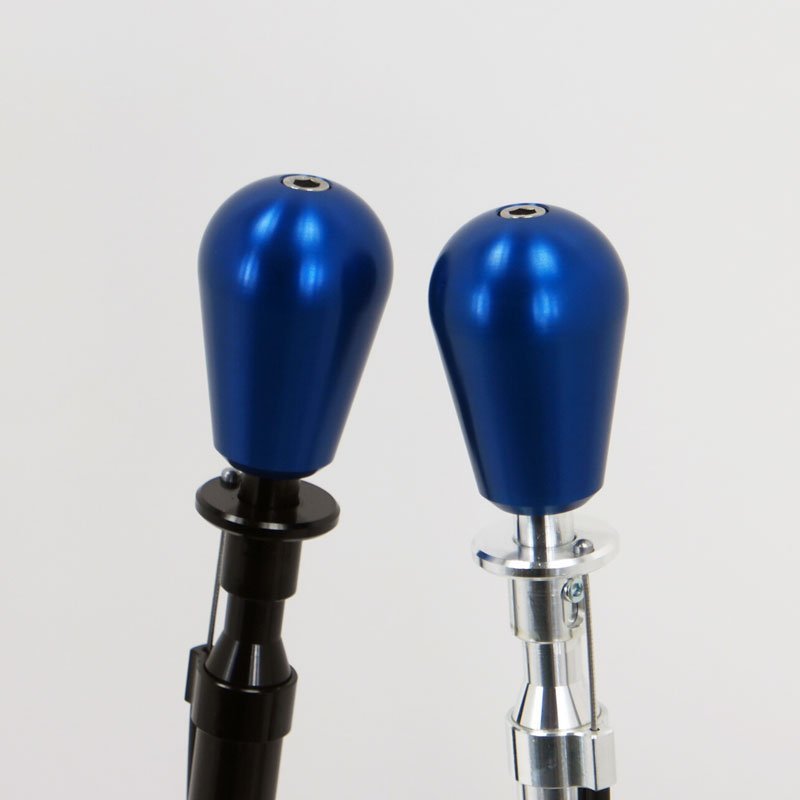

- Shift knob free selectable in different versions/ Colors.
Total height: | approx. 310 mm |
Total length: | approx. 170 mm |
Dimensions of base plate: | approx. 150 x 130 mm |
Shifting travel: | approx. 65 mm |
Selector travel (transverse direction): | approx. 65 mm |
Weight (complete): | approx. 1,35 kg |
Offset of the gear lever knop (back / up): | approx. 0 / 120 mm |
Gearshift cables are not included in the delivery.

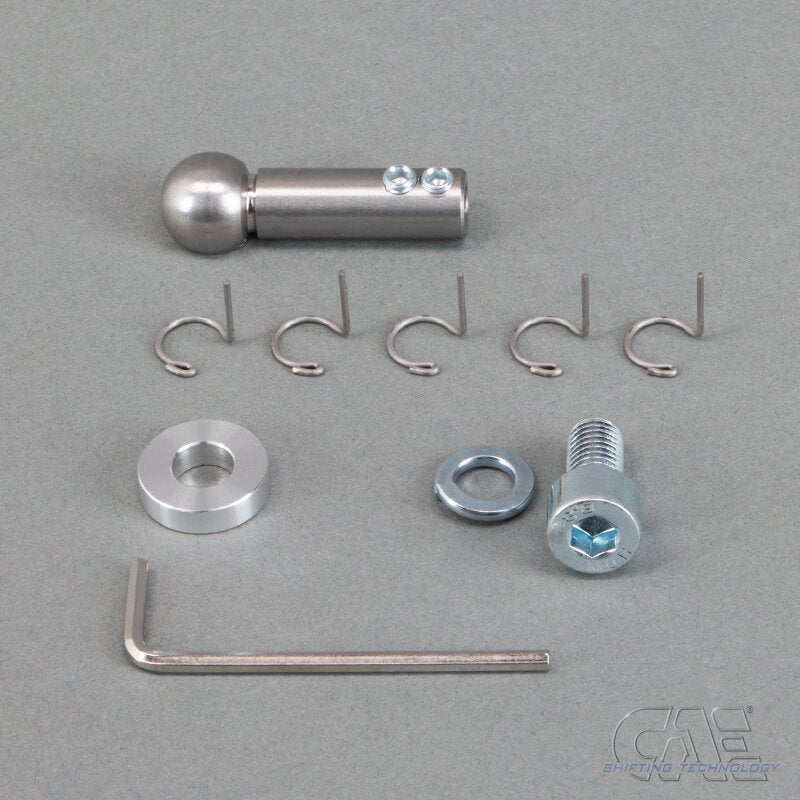

Delivery: Shifter completely assembled, screws and small parts, ball pan for selection cable
installation manual downloadable here behind the PDF tab
ATTENTION
TÜV PARTS CERTIFICATE is available for this Shifter.
The legal use in road traffic is therefore possible without any problems after the assessment by a testing organization.
please ask in your country about the applicable regulations
