CAE Ultra Shifter for BMW F8X M2 - M3 - M4
CAE Ultra Shifter for BMW F8X M2 - M3 - M4
Regular price
$1,240.00 USD
Regular price
Sale price
$1,240.00 USD
Unit price
per
Shipping calculated at checkout.
CAE ORDERS MAY HAVE A LEAD TIME, IF THERE IS A TIME CRUNCH PLEASE REACH OUT PRIOR TO ORDERING FOR CURRENT ETA. "IN STOCK" ON THE WEBSITE IS NOT ALWAYS 100% ACCURATE DUE TO MULTIPLE CHANNELS OF SALES. Please view our cancellation policies or reach out prior to ordering if there are questions.

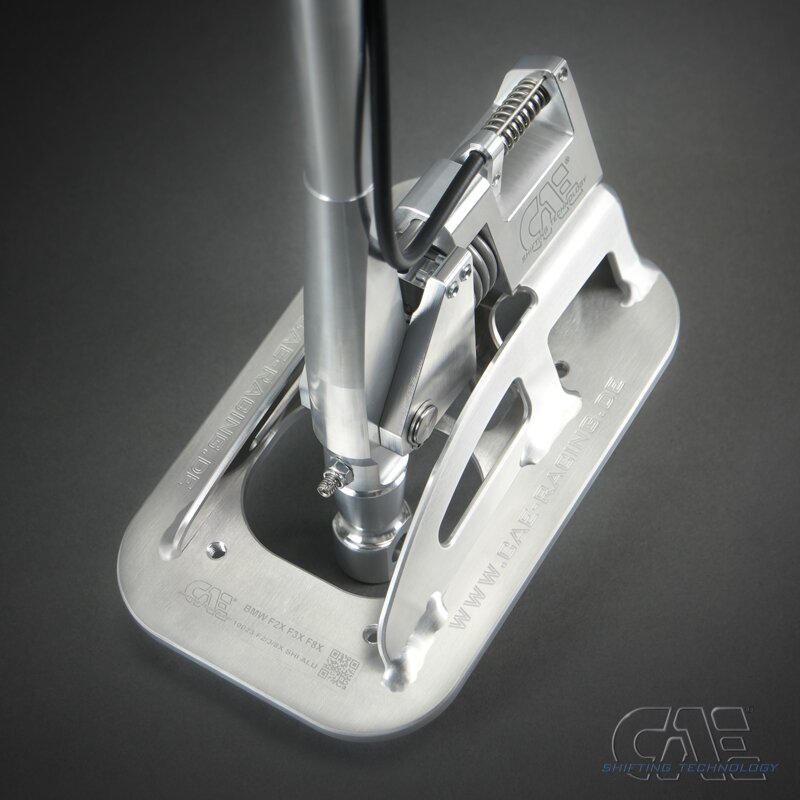

CAE Ultra Shifter F8X M2 - M3 - M4
Our newest product in the CAE-BMW family
We have further developed 85% of all components of this shifter to make it perfect
Our newest product in the CAE-BMW family
We have further developed 85% of all components of this shifter to make it perfect
| Shifter fits to following BMW Models: |
| M2 F87 |
| M2 F87 LCI |
| M3 F80 |
| M3 F80 LCI |
| M4 F82 |
| M4 F82 LCI |
| M4 F83 |
| M4 F83 LCI |
- Complete kit for adaptation to BMW F8X M2 - M3 - M4 with 6 speed manual gearbox standard H-pattern,

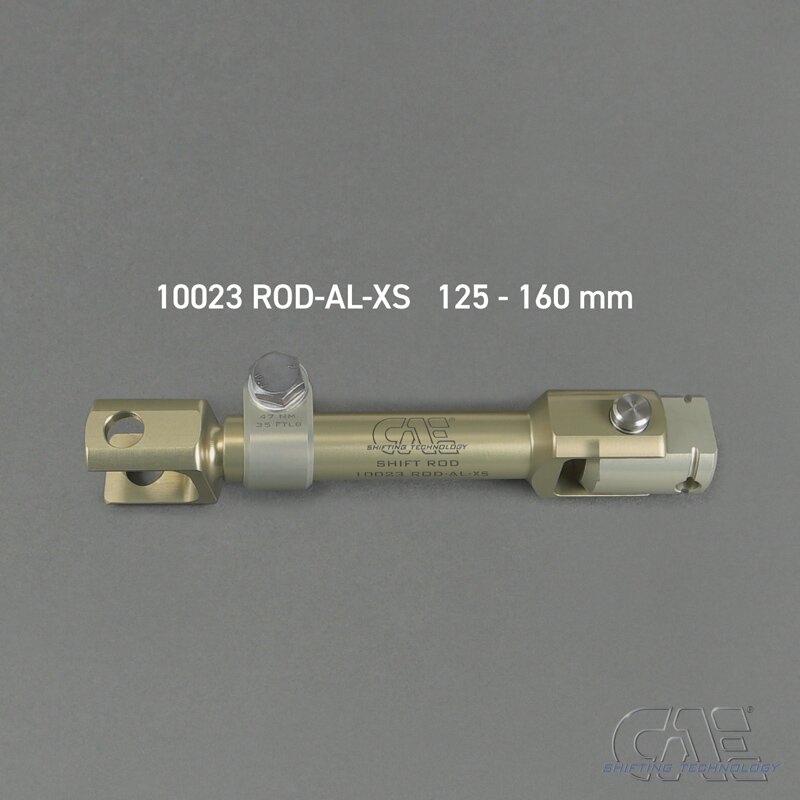

- This Shifter is technically equal with our F2/3X Shifter but will be delivered with shift rod XS fitting only to "M2 M3 M4"

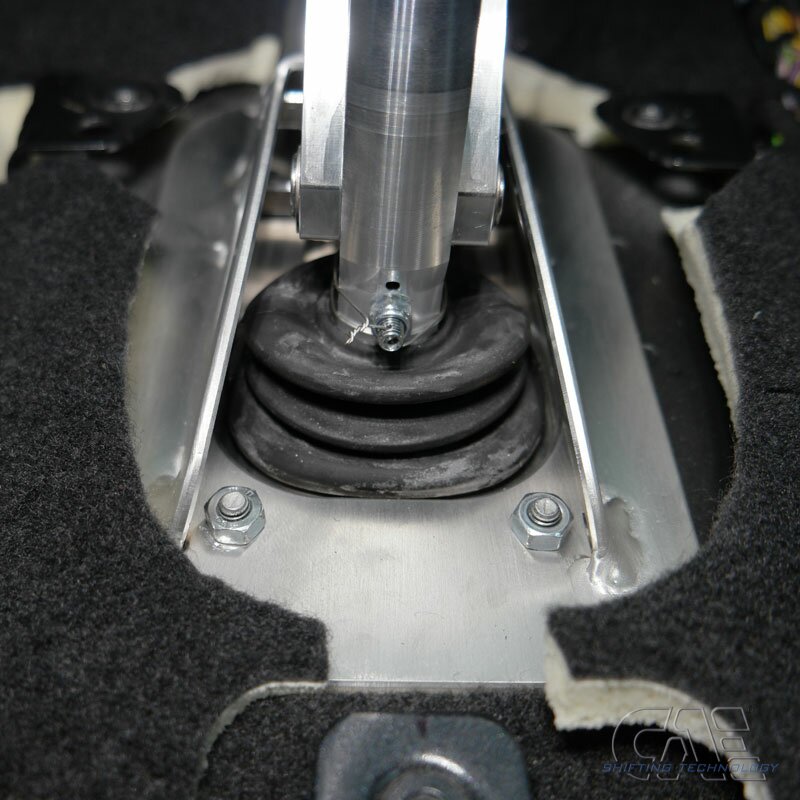

- No drilling into the Tunnel Sheet required !!!
- Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift knob close to the steering wheel.
The shift pattern is confined to approx. 75 x 75 mm, therfore super-precise shifting, exclusively H-pattern. - The clutch system remains in its original form.
- Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever.

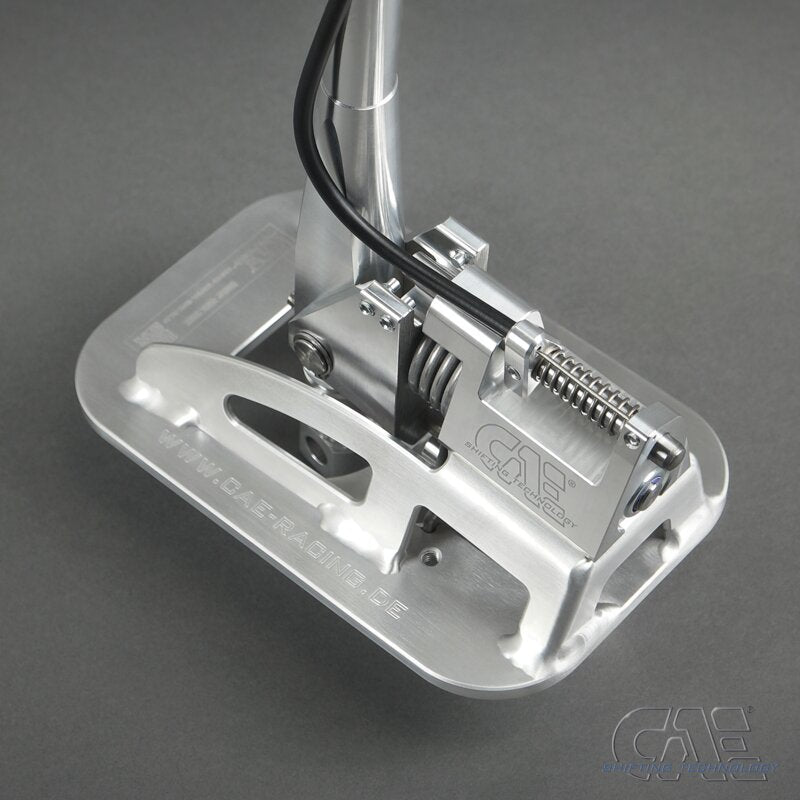

- Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3/ 6mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
- Problem-free shifting of gears under stress or in curves.
- Integrated 3/4 position spring, ensuring perfect feedback when changing alleys while shifting up and down.
- 1/2 - 5/6 and reverse alleys adjustable separately.

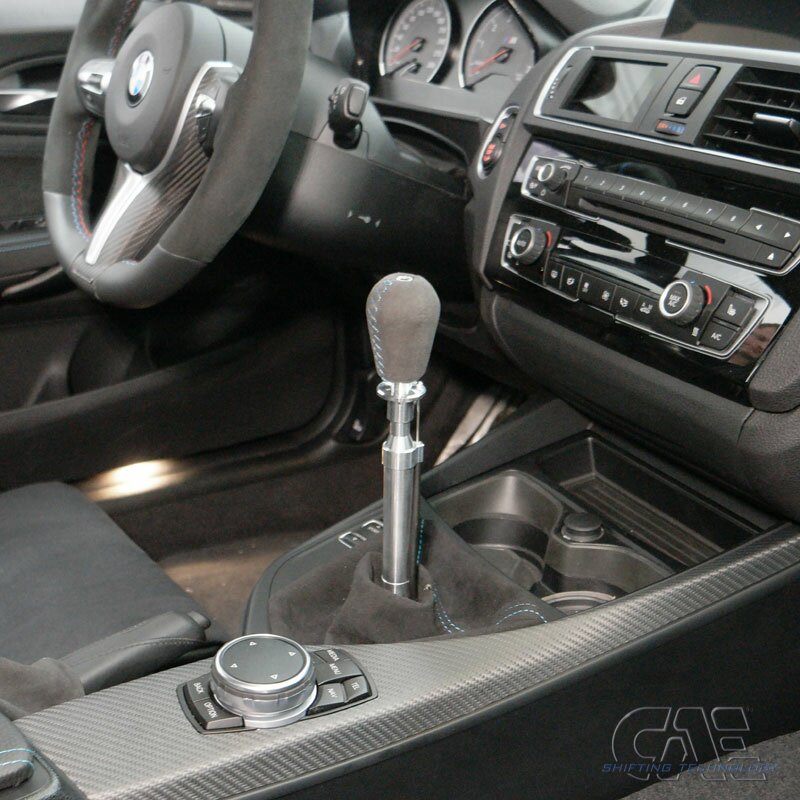

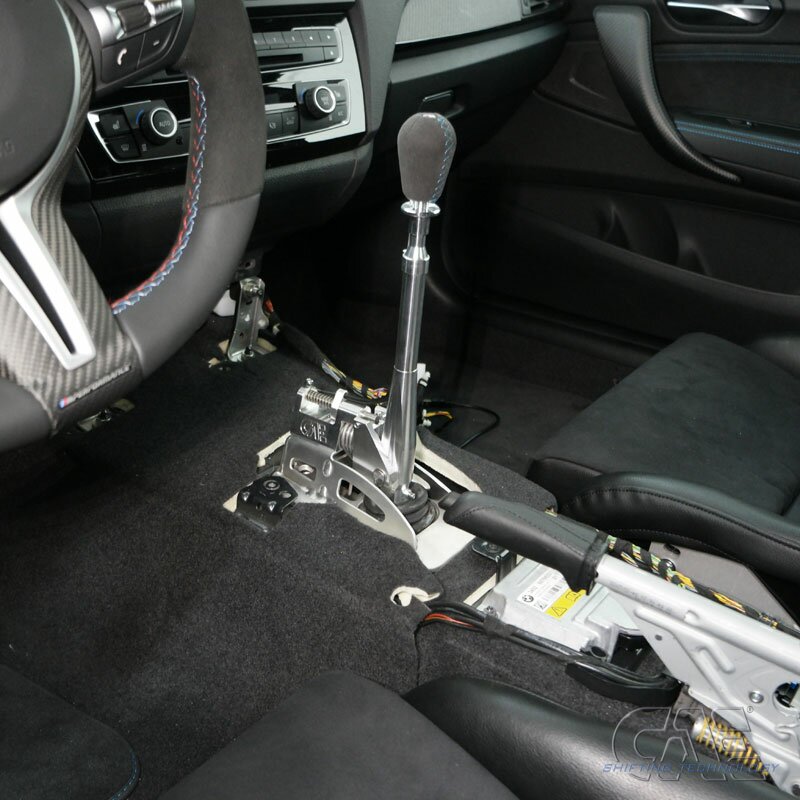

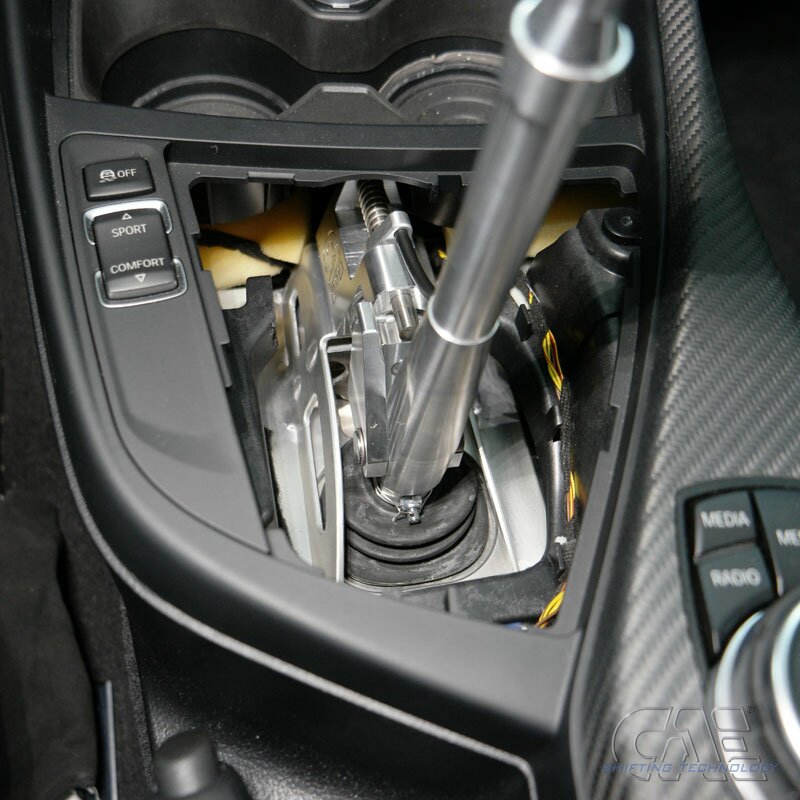

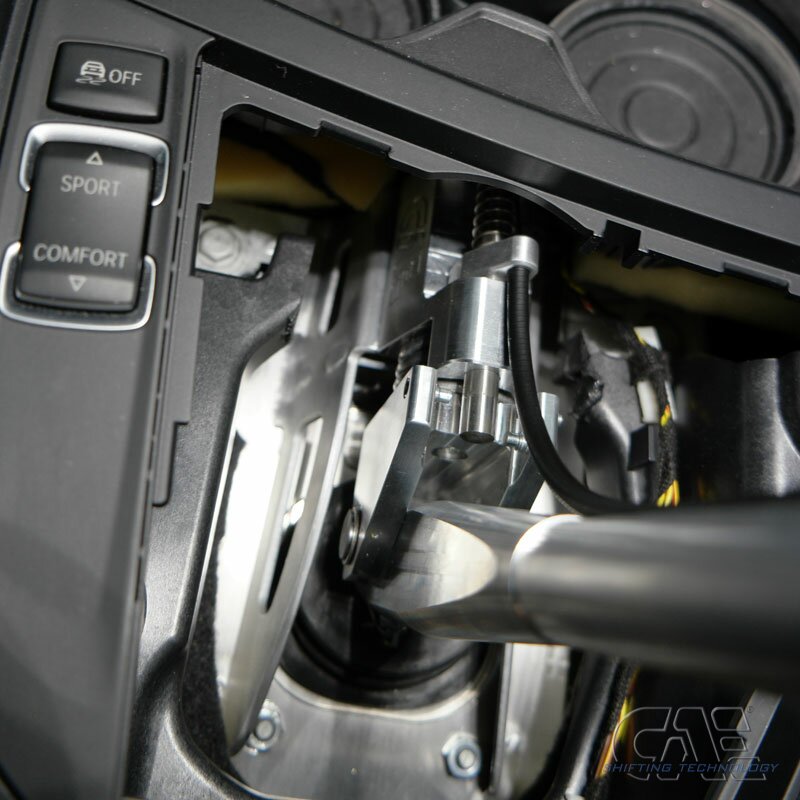

- Shifter is intended for vehicles with interior equipment, he can be installed nearly invisible

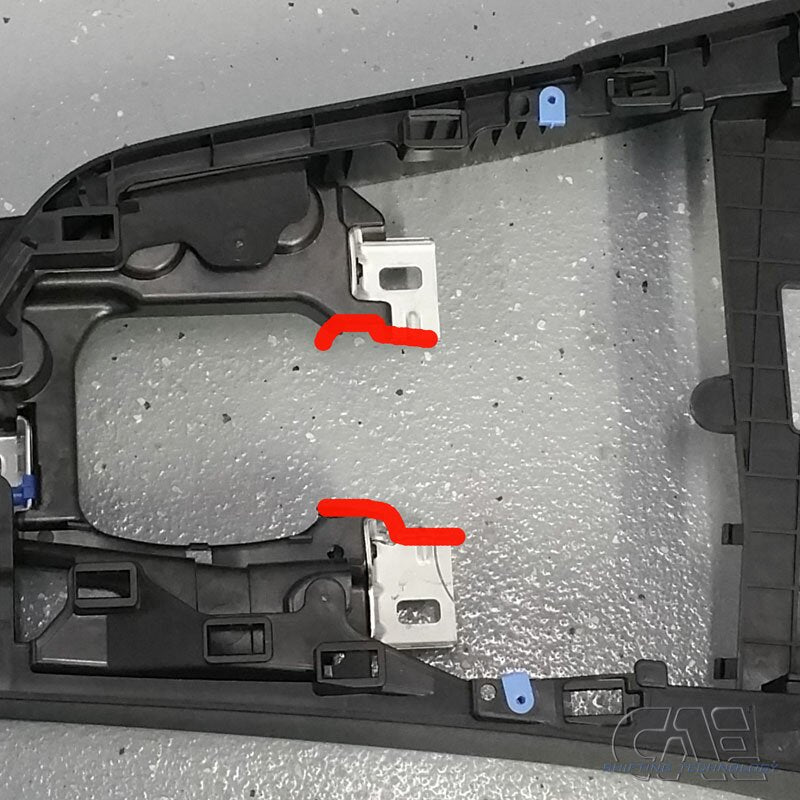

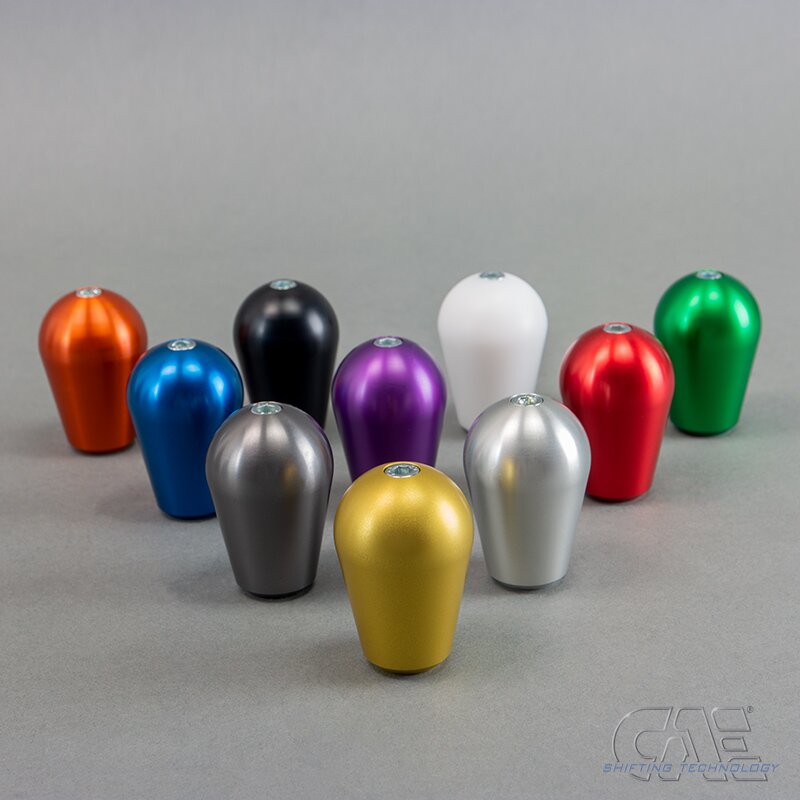

The centre console have to be modified for fitting the shifter. - Shift knob free selectable in different versions/ colors.
| Total height: | approx. 375 mm |
| Total length: | approx. 180 mm |
| Dimensions of base plate: | approx. 180 x 115 mm |
| Shifting travel: | approx. 75 mm |
| Selector travel (transverse direction): | approx. 75 mm |
| Weight (complete): | approx. 1,66 kg |
| Offset of the gear lever knop (back / up): | depending on vehicle type approx. 0 / 100 mm |

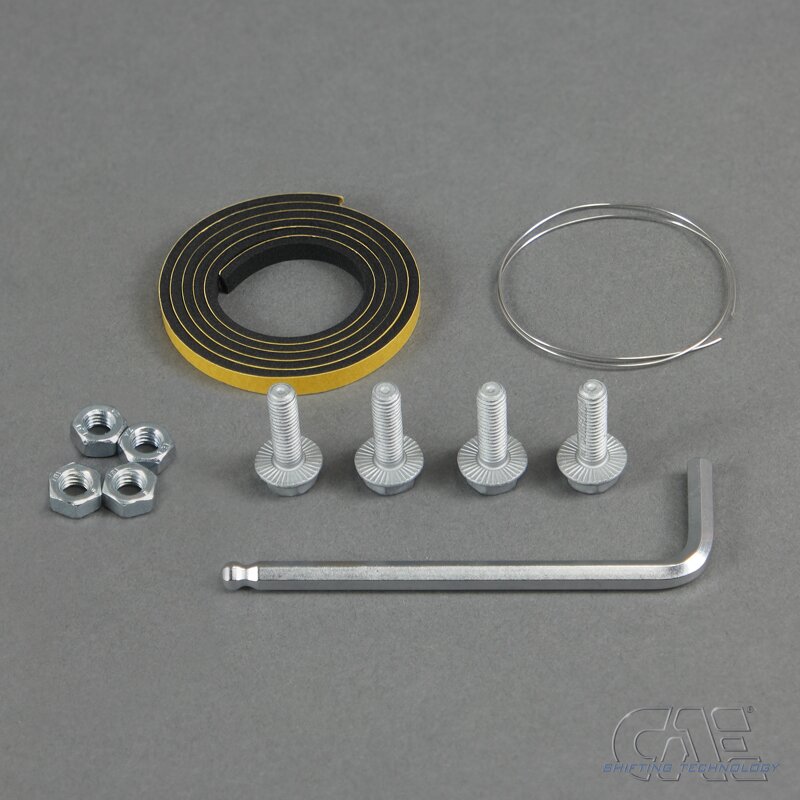

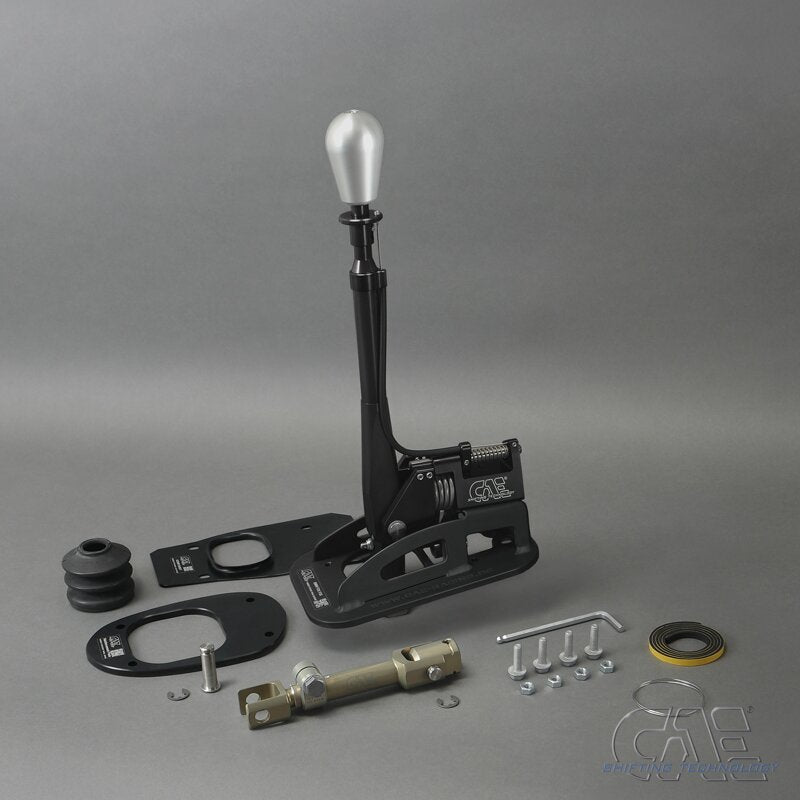

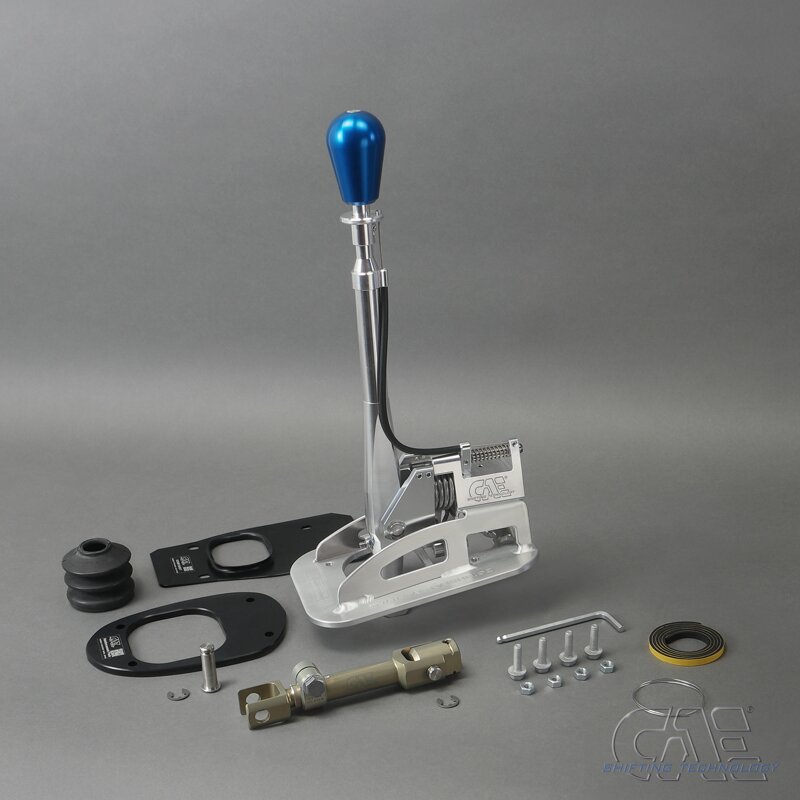

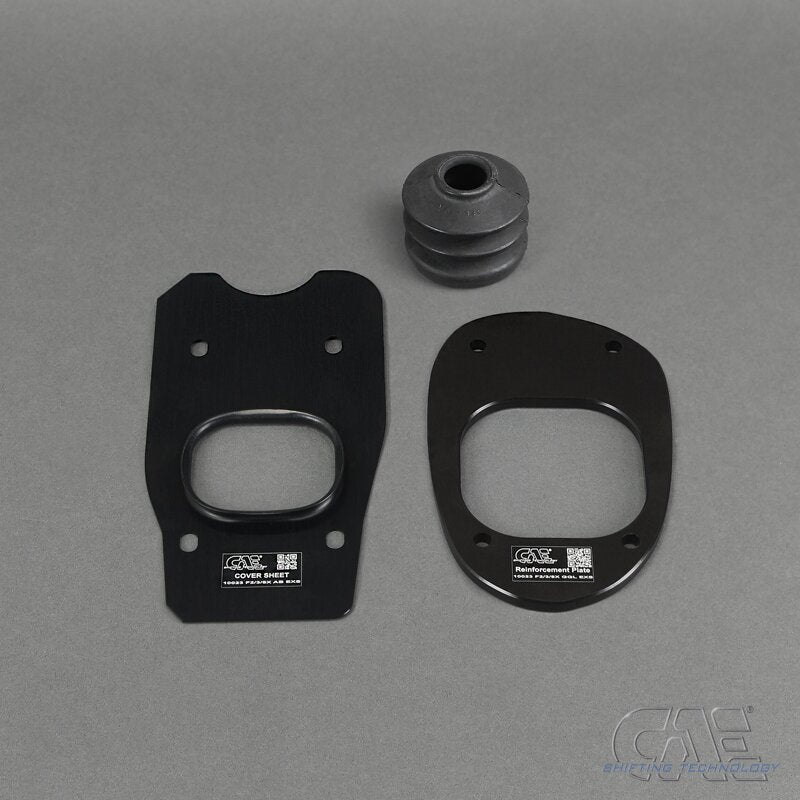

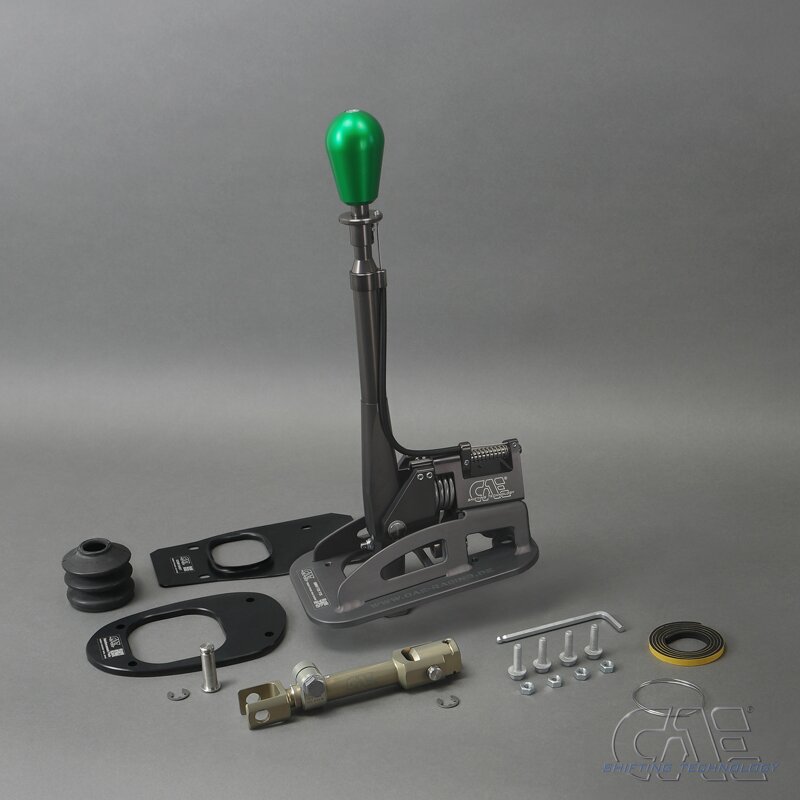

Delivery: Shifter completely assembled, CAE Shift Rod "XS", Cover plate with rubber boot all screws and small parts
Installation Manual for download you will find here
ATTENTION
TÜV PARTS CERTIFICATE is available for this Shifter.
The legal use in road traffic is therefore possible without any problems after the assessment by a testing organization.
please ask in your country about the applicable regulations
